HV PDU | PDU
PDU
Whole aluminum alloy metal design,lightweight and beautiful appearance,excellent heat dissipation performance.
Electrical input and output can be designed according to customer's requirements.

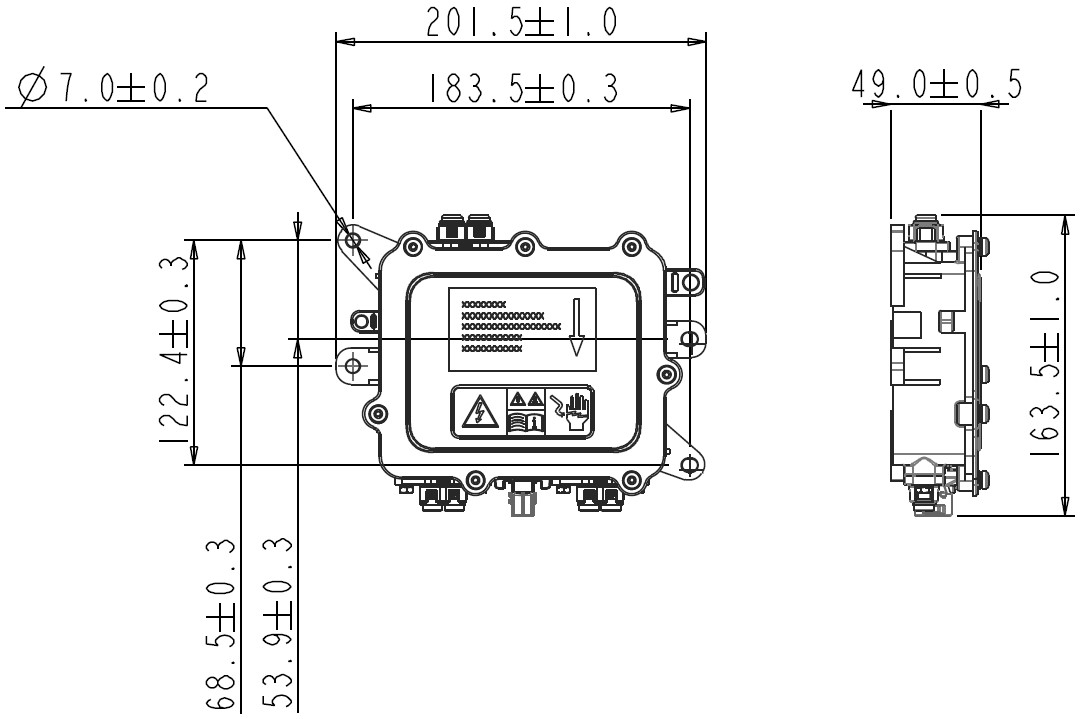

SMALL PDU
Product Performance
■ Rated Voltage: 1000V DC
■ Rated Current: 50A Max
■ Temperature Range: -40°C to +85°C
■ Protection Rating: IP67
■ High-Voltage Interlock (HVIL): Built-in HVIL
■ Compatible Cable Size: 2.5mm² – 6mm²
Internal Components
■ Base: ADC12
■ Cover: 5052
■ Busbar: T2 Copper
Material Specifications
■ RoHS Compliant
■ Flammability Rating: UL94 V-0
Test Items

■ Appearance: Weight, Dimensions, Visual Inspection, Marking

■ Performance: Circuit Continuity, Temperature Rise, Insulation & Withstand Voltage Test, Aging Test,

Thermal Shock, Damp Heat (Steady State), Salt Spray Test, Mechanical Vibration, Mechanical Shock,

 Ice Water Shock, Chemical Resistance Test, etc.
